Mosaics back Mounting

Gavazzi fiberglass meshes for the mosaics back-mounting

Gavazzi provides solutions for the pre-assembly of mosaics made of different materials (ceramic, glass paste, marble, natural stone, etc.)

Use

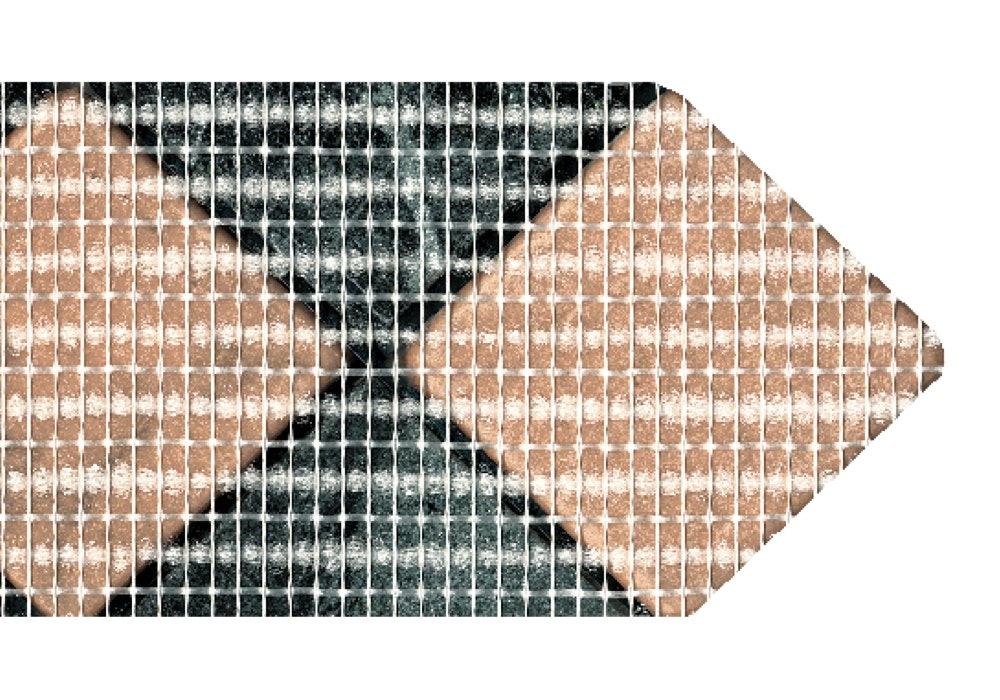

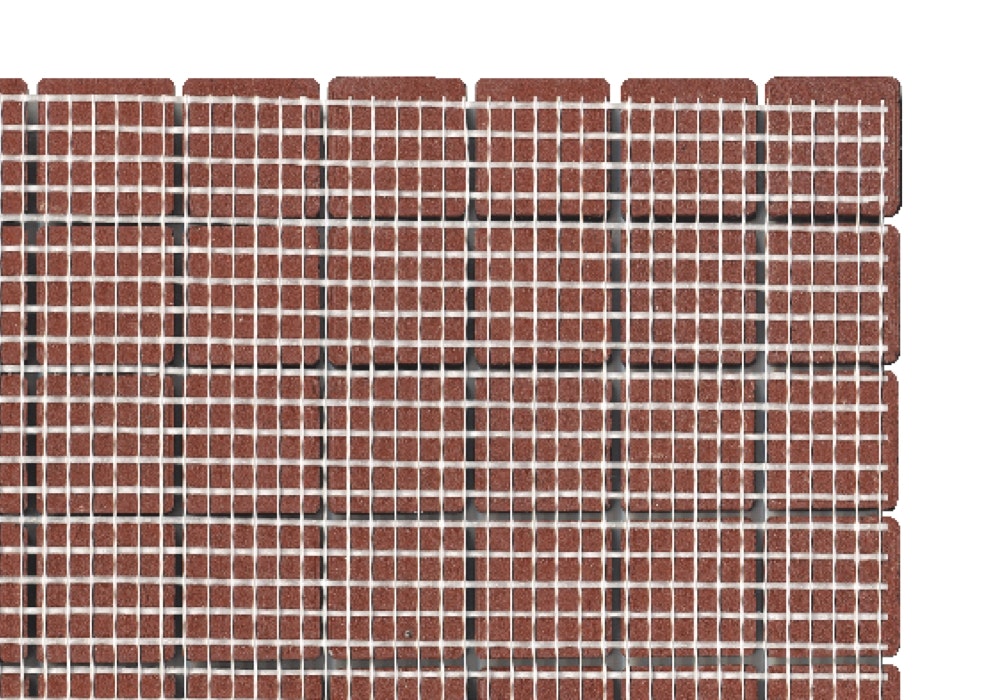

The use of fiberglass meshes as a support for pre-assembly ensures the maximum surface to attach the mosaic to the wall. The mechanical and humidity resistance makes the fiberglass mesh an ideal support even for the most demanding applications.
To ensure the optimal adhesion of the mesh to the mosaic, Gavazzi has developed a range of meshes made with special voluminized yarns.

Advantages

  • Easy installation: higher surface of the mosaic available for adhesion to the wall
  • Impotrescibility: it does not fear humidity
  • Cut-to-size: the mesh width is cut precisely to the customer's needs

Laying

The special sizing resin of Gavazzi meshes guarantees excellent bonding, both with hot-melt and cold gluing systems, made both manually and with automatic lines.

Recommended products

ARTICLE WEIGHT MESH WIDTH WARP RESISTANCE TO TENSILE STRENGTH WEFT RESISTANCE TO TENSILE STRENGTH TECHNICAL DATA SHEET
0075-A 90 g/m2 ± 5% 4,0 x 5,0 mm 1450 N/5cm 1550 N/5cm
0081-A 81 g/m2 ± 5% - 850 N/5cm 400 N/5cm
0093-A 103 g/m2 ± 5% 6,4 x 6,7 mm 1500 N/5cm 1600 N/5cm
0109-A 126 g/m2 ± 5% - 2300 N/5cm 800 N/5cm
0170-A 165 g/m2 ± 5% 4,0 x 5,0 mm 2000 N/5cm 2300 N/5cm
