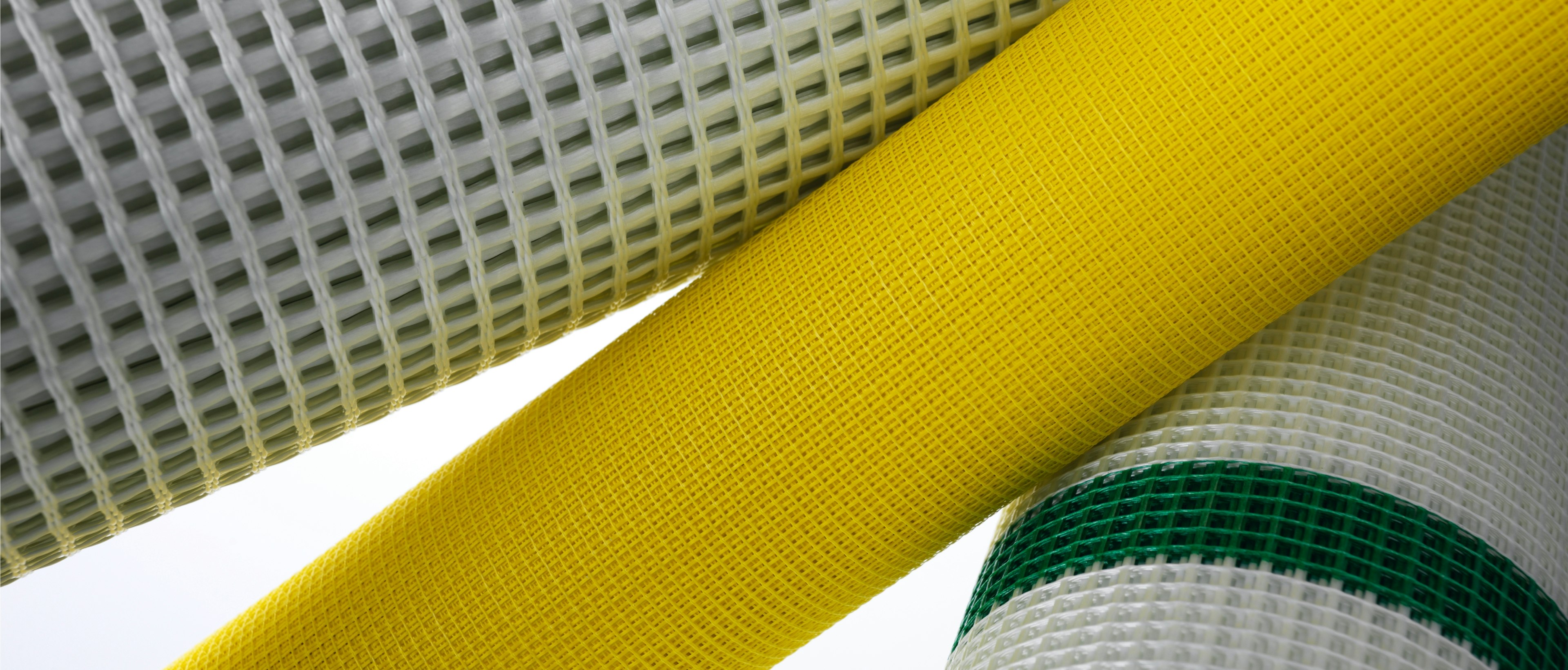

Glass fiber plain or leno meshes. Weight from 30 to 650 g/m2, impregnation with thermoplastic or thermosetting coating. Tensile strength up to 150 kN/m, available in various widths and mesh widths.
Products
| ARTICLE | WEIGHT | MESH WIDTH | WARP RESISTANCE TO TENSILE STRENGTH | WEFT RESISTANCE TO TENSILE STRENGTH | TECHNICAL DATA SHEET | |
|---|---|---|---|---|---|---|
| AR0245-A | 243 g/m2 ± 10% | 25 x 25 mm | 55 kN/m | 52 kN/m | Request | |
| AR0245EP | 243 g/m2 ± 10% | 25 x 25 mm | 60 kN/m | 54 kN/m | Request | |
| AR0330-A | 333 g/m2 ± 10% | 33 x 33 mm | 81 kN/m | 84 kN/m | Request | |
| AR0355EP |  |
305 g/m2 ± 10% | 38 x 38 mm | 78 kN/m | 78kN/m | Request |
| AR0360-A | 305 g/m2 ± 10% | 18 x 18 mm | 79,9 kN/m | 74,4 kN/m | Request | |
| AR0590-A | 590 g/m2 ± 10% | 38 x 38 mm | 125 kN/m | 125 kN/m | Request | |
| AR0590EP | |
615 g/m2 ± 10% | 38 x 38 mm | 155 kN/m | 150kN/m | Request |
| 0033-A | 37 g/m2 ± 5% | 10 x 10 mm | 600 N/5cm | 450 N/5cm |  |
|
| 0056A98 | 58 g/m2 ± 5% | 1,3 x 3,3 mm | 850 N/5cm | 550 N/5cm | |
|
| 0059-A | 61 g/m2 ± 5% | 2,7 x 2,7 mm | 950 N/5cm | 1000 N/5cm | |
|
| 0073-A | 73 g/m2 ± 5% | 4,0 x 5,0 mm | 1300 N/5cm | 1000 N/5cm | |
|
| 0074A78 | 71 g/m2 ± 5% | 4,0 x 8,3 mm | 1300 N/5cm | 900 N/5cm | |
|
| 0074-A | 71 g/m2 ± 5% | 4,0 x 8,3 mm | 1300 N/5cm | 900 N/5cm | |
|
| 0075-A | 90 g/m2 ± 5% | 4,0 x 5,0 mm | 1450 N/5cm | 1550 N/5cm | |
|
| 0081-A | 81 g/m2 ± 5% | - | 850 N/5cm | 400 N/5cm | |
|
| 0093-A | 103 g/m2 ± 5% | 6,4 x 6,7 mm | 1500 N/5cm | 1600 N/5cm | |
|
| 0098-A | 98 g/m2 ± 5% | 12,5 x 11,8 mm | 1650 N/5cm | 1400 N/5cm | |
|
| 0098-AE | 98 g/m2 ± 5% | 12,5 x 11,8 mm | 1650 N/5cm | 1400 N/5cm | |
|
| 0104-A | 103 g/m2 ± 5% | 6,4 x 6,7 mm | 1400 N/5cm | 1500 N/5cm | |
|
| 0109-A | 126 g/m2 ± 5% | - | 2300 N/5cm | 800 N/5cm | |
|
| 0133-A | 120 g/m2 ± 5% | 12,5 x 11,5 mm | 1650 N/5cm | 2000 N/5cm | |
|
| 0140-A | |
135 g/m2 ± 5% | 5 x 6 mm | 35 N/mm | 35 N/mm | |
| 0148A14 | |
148 g/m2 ± 5% | 5,9 x 4 mm | 40 N/mm | 35 N/mm | |
| 0148R-A | |
148 g/m2 ± 5% | 5,9 x 4 mm | 40 N/mm | 35 N/mm | |
| 0155R-A | |
150 g/m2 ± 5% | 7,1 x 8,0 mm | 35 N/mm | 41 N/mm | |
| 0158-A | |
140 g/m2 ± 5% | 10,0 x 10,0 mm | 35 N/mm | 40 N/mm | |
| 0158-CA |  |
140 g/m2 ± 5% | 10,0 x 10,0 mm | 35 daN/cm | 35 daN/cm | |
| 0159A16 | |
155 g/m2 ± 5% | 7,1 x 7,7 mm | 38 N/mm | 44 N/mm | |
| 0159R-A | |
155 g/m2 ± 5% | 7,1 x 7,7 mm | 38 N/mm | 44 N/mm | |
| 0159RA16 | |
155 g/m2 ± 5% | 7,1 x 7,7 mm | 38 N/mm | 44 N/mm | |
| 0161-A | |
160 g/m2 ± 5% | 4,0 x 5,3 mm | 43 N/mm | 46 N/mm | |
| 0161-CA | |
160 g/m2 ± 5% | 4,0 x 5,3 mm | 35 daN/cm | 35 daN/cm | |
| 0170-A | 165 g/m2 ± 5% | 4,0 x 5,0 mm | 2000 N/5cm | 2300 N/5cm | |
|
| 0170-AE | 165 g/m2 ± 5% | 4,0 x 5,0 mm | 2000 N/5cm | 2000 N/5cm | |
|
| 0205-A | 205 g/m2 ± 5% | 5,4 x 5,4 mm | 2500 N/5cm | 3000 N/5cm | |
|
| 0205-AE | 205 g/m2 ± 5% | 5,4 x 5,4 mm | 2300 N/5cm | 2500 N/5cm | |
|
| 0225-A | 222 g/m2 ± 5% | 8,3 x 9,5 mm | 3200 N/5cm | 3200 N/5cm | |
|
| 0370-A | |
368 g/m2 ± 5% | 5,9 x 5 mm | 70 N/mm | 79 N/mm | |
| 0510-A | |
492 g/m2 ± 5% | 8,0 x 8,0 mm | 125 N/mm | 125 N/mm | |
| 0510-AE | 505 g/m2 ± 5% | 8,0 x 8,0 mm | 5500 N/5cm | 5000 N/5cm | |
|
| 1217-A | |
134 g/m2 ± 10% | 40 x 33 mm | 30 kN/m | 30 kN/m | |
| 1245-A | 160 g/m2 ± 10% | 38 x 38 mm | 28,6 kN/m | 31,2 kN/m | |
|
| 1260-A | 305 g/m2 ± 5% | 16,7 x 16,1 mm | 3200 N/5cm | 3200 N/5cm | |
